Description

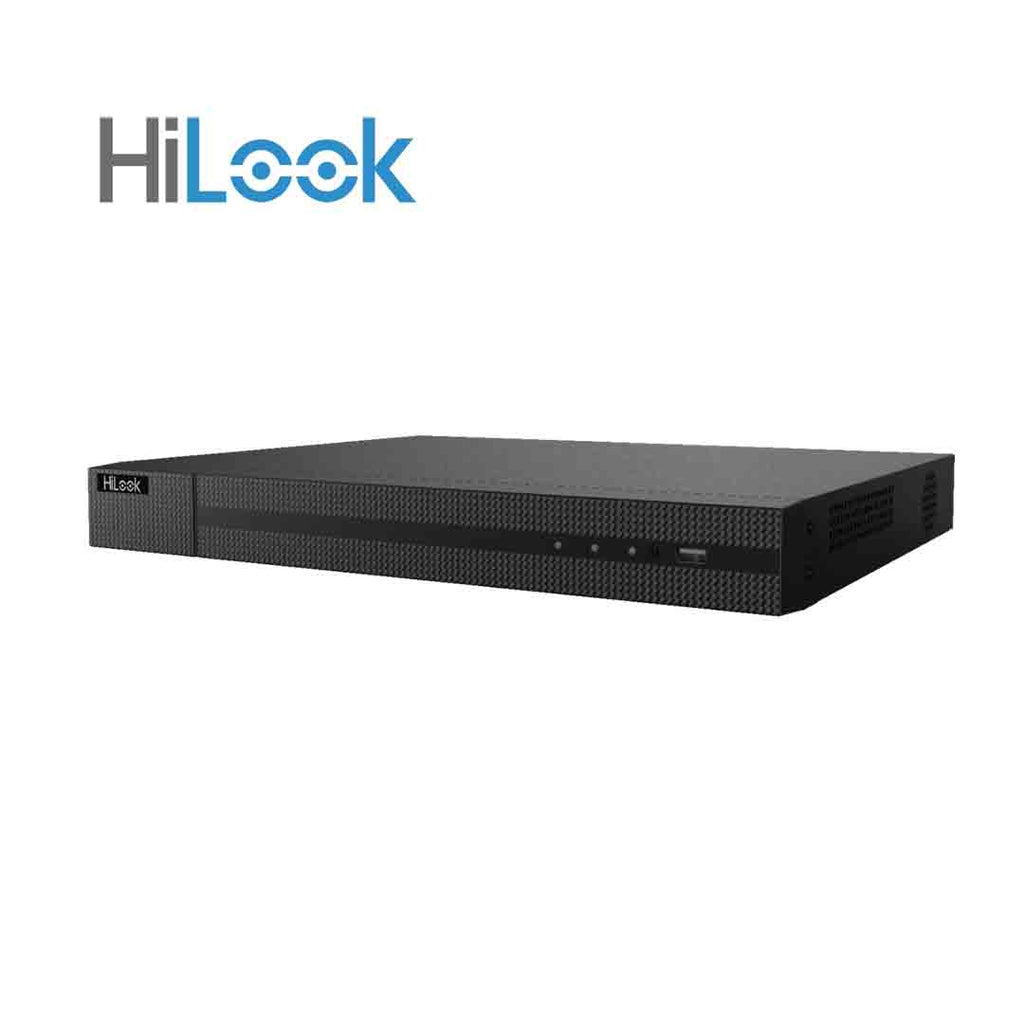

Hilook NVR 16 Channels NVR-216MH-C/16P
16-ch 1U 16 PoE 4K NVR
- Up to 16-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 160 Mbps incoming bandwidth
-
Hilook NVR 16 Channels NVR-216MH-C/16P
Specification
-
Video And Audio
- IP Video Input16-ch
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
-
Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Decoding Capability4-ch@1080p
- Synchronous Playback16-ch
-
Network
- Remote Connection32
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
-
PoE
- Interface16-ch
- Power≤ 150 W
- StandardIEEE 802.3 af/at
-
Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 8 TB capacity for each disk
- USB Interface2 × USB 2.0
-
General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 15 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10 to 90 %
- Chassis1U chassis
- Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
- Weight≤ 2.6 kg (without HDD, 5.7 lb.)
Warranty HiLook NVR-216MH-C/16P
PRO MAX VISION guarantees that goods will be of acceptable quality, meaning they will be fit for their intended purpose, have no defects, be safe and durable.
All new products sold by PRO MAX VISION are covered by a 24 month warranty or the manufacturers warranty whichever is the greater.
PRO MAX VISION will accept returns under warranty for repair or replacement where the product is found to be defective/faulty, not fit for its intended purpose, does not match the specification or description or the part was incorrectly supplied.
Our warranty is limited to the replacement of faulty items or parts and does not include the labour costs for installing the purchased item, nor does it include damage due to incorrect fitting of parts or accessories.
Download
Data Sheet NVR-216MH-C/16P
Steps Setup NVR-216MH-C/16P
How to Video NVR-216MH-C/16P
