Description

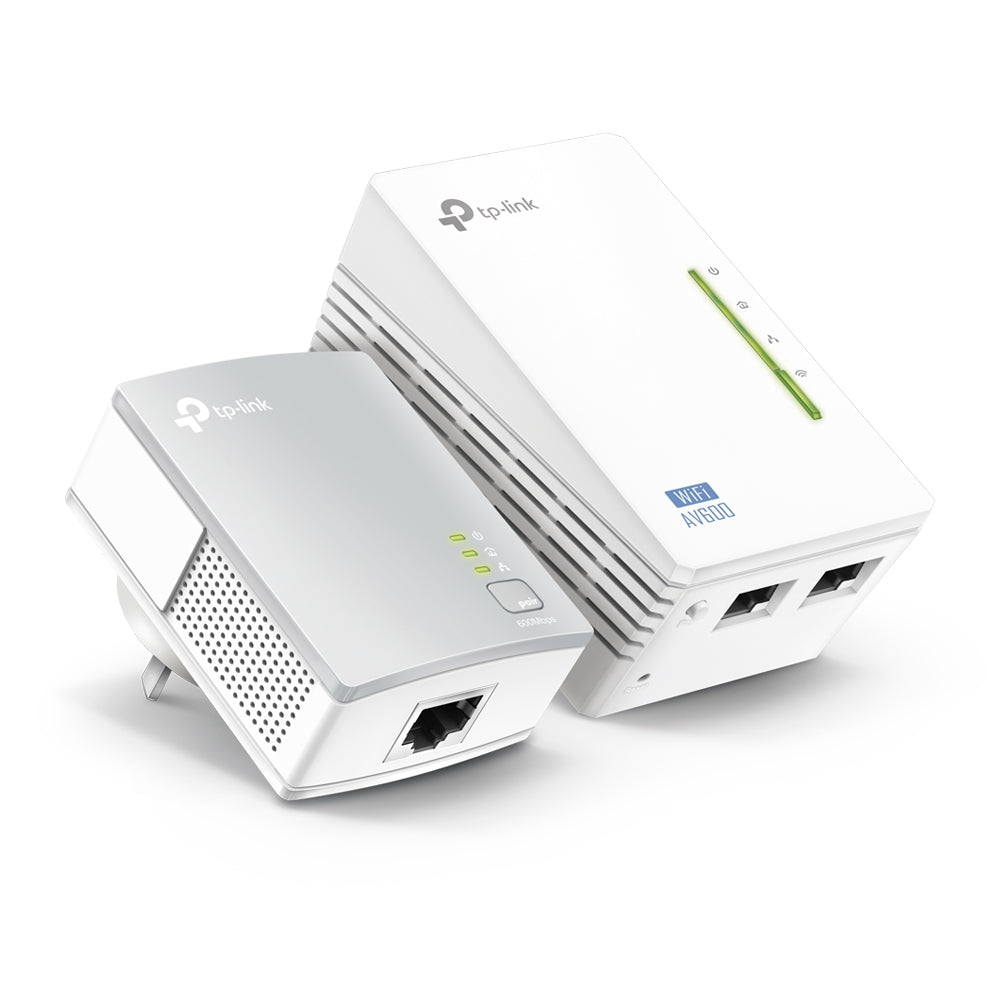

TP-Link 300Mbps AV600 WiFi Powerline Extender Starter Kit (TL-WPA4220KIT)
- One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
Download for TL-WPA4220 KIT
Manual
- TL-WPA4220 KIT(AU)_V5_Quick Installation Guide
- TL-WPA4220KIT(AU)_V5_User Guide
- Wireless PLC(Asia-Pacific_6 languages)_Quick Installation Guide
Specifications
HARDWARE FEATURES |
|
|---|---|
| Standards and Protocols | HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n |
| Plug Type | AU |
| Interface | 2*10/100Mbps Ethernet Port |
| Button | Pair, Reset, Wi-Fi/Wi-Fi Clone |
| Power Consumption | Maximum: 7.608W (220V/50Hz) Typical: 7.216W (220V/50Hz) Standby: 4.610W (220V/50Hz) |
| LED Indicator | PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone |
| Dimensions ( W x D x H ) | TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm) TL-PA411: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm) |
| Range | 300 Meters over electrical circuit |
WIRELESS FEATURES |
|
|---|---|
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
| Wireless Security | 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
| Advanced Functions | Enable/DisableWireless Radio,WMM, Wireless Statistics |
| Transmission Power | CE:<20dBm(2.4GHz) FCC:<30dBm |
SOFTWARE FEATURES |
|
|---|---|
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline Security: 128-bit AES Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption |
OTHERS |
|
|---|---|
| Certification | CE, RoHS |
| Package Contents | Package Contents: ● AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA411 ● Ethernet Cable × 2 ● Quick Installation Guide |
| System Requirements | Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Warranty | Limited 3-Year Warranty For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma |
