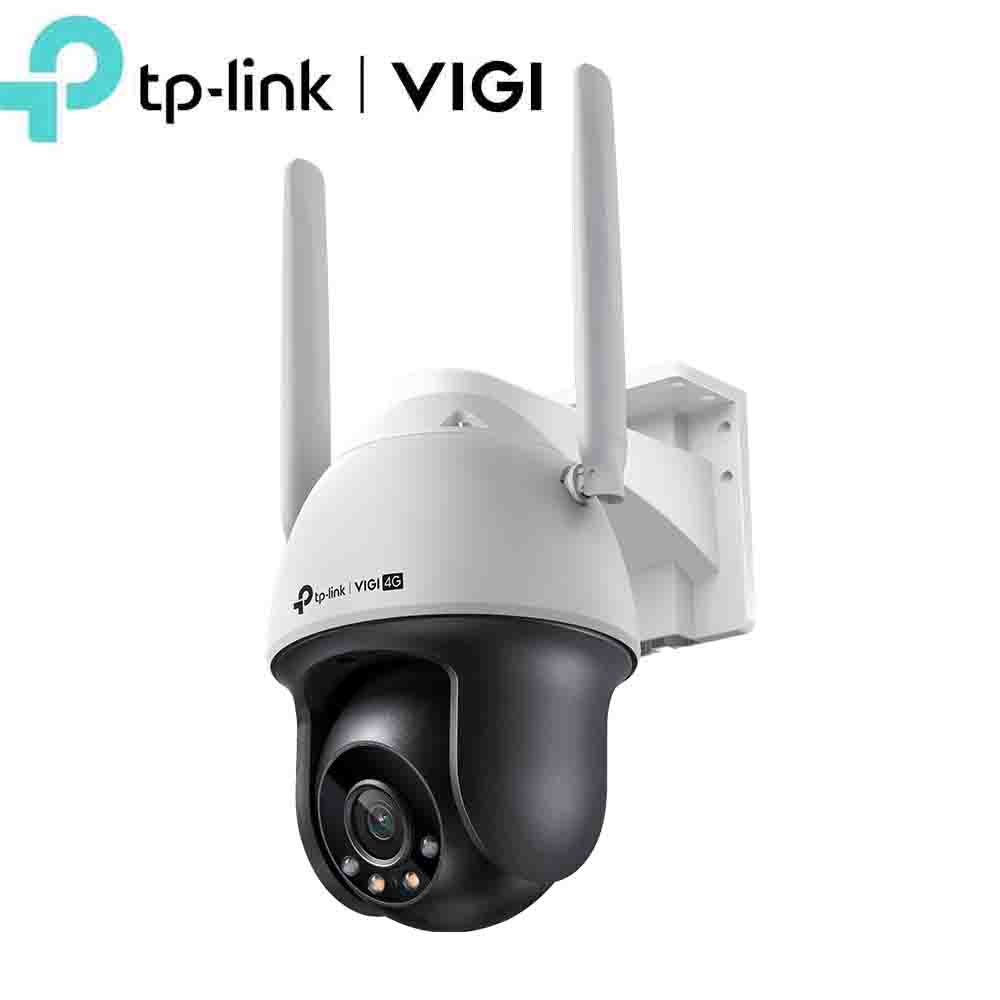

tp-link VIGI 4MP Outdoor Full-Colour 4G Pan Tilt Network Camera - VIGI-C540-4G
VIGI 4MP Outdoor Full-Colour 4G Pan Tilt Network Camera
- 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Colour: Experience clear, vibrant 24-hour monitoring, even in total darkness.
- 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
- 360° Monitoring: Cover every corner and eliminate blind spots.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
- Onboard Storage: Support on-board storage up to 256 GB (SD card slot).
Clarity and Colours, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Colour camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colourful surveillance.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
-
Human & Vehicle Classification
-
Only Human Classification On
-
Only Vehicle Classification On
Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what's happening and take action without wasting time on irrelevant footage.
Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.
Specifications
CAMERA |
|
|---|---|
| Image Sensor | 1/3.06” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS |
|
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94° |
| Lens Mount | M12*0.5 |
| DORI Distance | Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
PTZ |
|
|---|---|
| Pan/tilt Range | Pan: 0° to 348°, Tilt: 0° to 120° |
| Pan/tilt Speed | • Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s • Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes; Auto restore to previous PT and lens status after power failure |
| Park Action | Yes; Preset; Patrol Scan |
| 3D Positioning | Yes |
Angle Adjustment (Manual) |
|
|---|---|
| Range | • Pan: 0° to 348° • Tilt: 0° to 120° |
ILLUMINATOR |
|
|---|---|
| IR LED | • Quantity: 2 • Range: 30m • Wavelength: 850nm |
| White LED | • Quantity: 2 • Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO |
|
|---|---|
| Max. Resolution | 2560 X 1440 |
| Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 3 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
Image |
|
|---|---|
| Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure, WDR, • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software • Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
AUDIO |
|
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK |
|
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 2 Main Streams & 2 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
4G |
|
|---|---|
| Standard | LTE-TDD/LTE-FDD/WCDMA |
| SIM Type | Nano SIM |
| Category | 4 |
| Frequency | • LTE-FDD: B 1/3/5/7/8/20/28 • LTE-TDD: B 38/40/41 • WCDMA: B 1/5/8 |
ALARM AND EVENT MANAGEMENT |
|
|---|---|
| Smart Event | • Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • People Detection • Vehicle Detection |
| Basic Event | • Motion Detection • Video Tampering Detection • Exception (Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
INTERFACES |
|
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB |

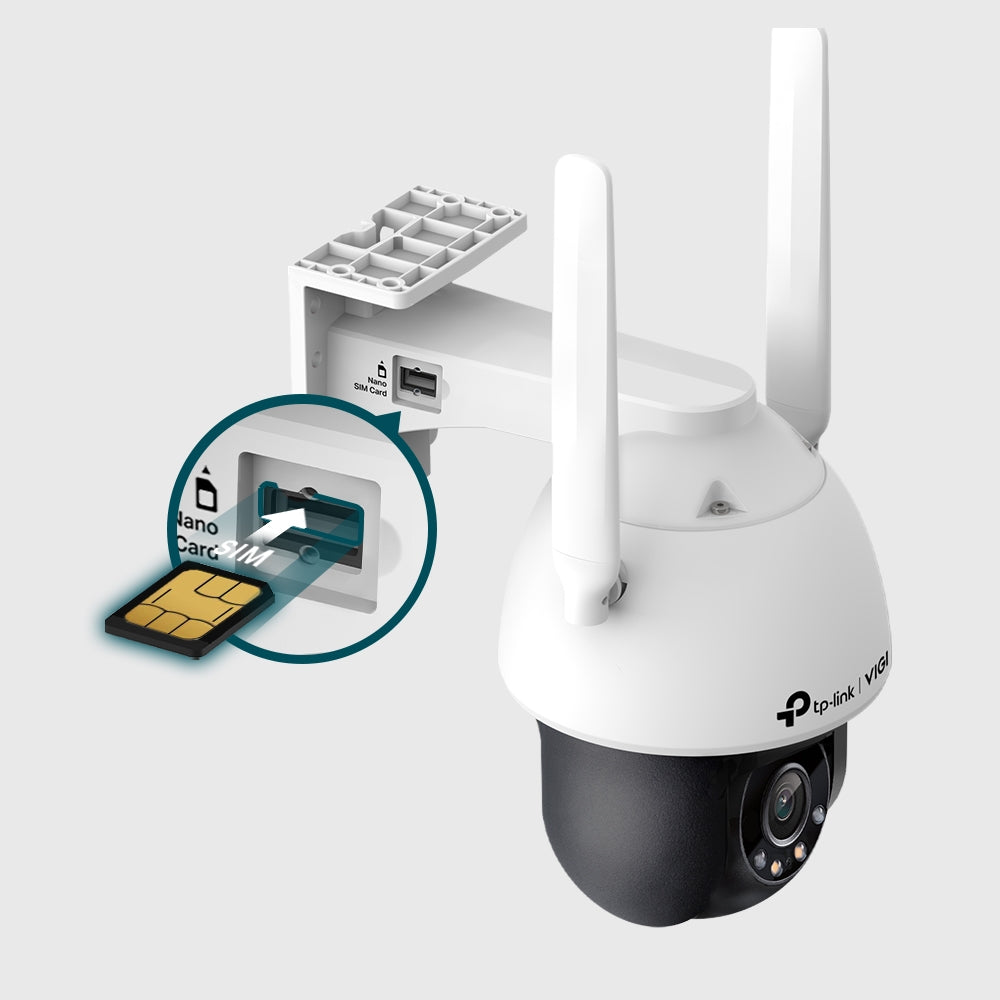

| Built-in Nano-SIM Card Slot | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
GENERAL |
|
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories • Power Adapter |
| Material | Plastic |
| Net Weight | 0.69 Kg |
| Gross Weight | 1.16 Kg |
| Power Supply | 12V DC/1A, 5.5mm Coaxial Power Plug |
| Antenna | • Quantity: 2 • Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna • Gain: Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 120 × 182 × 201 mm (excluding antennas) |
| Certifications | CE, RCM, BSMI, RoHS, NCC |
